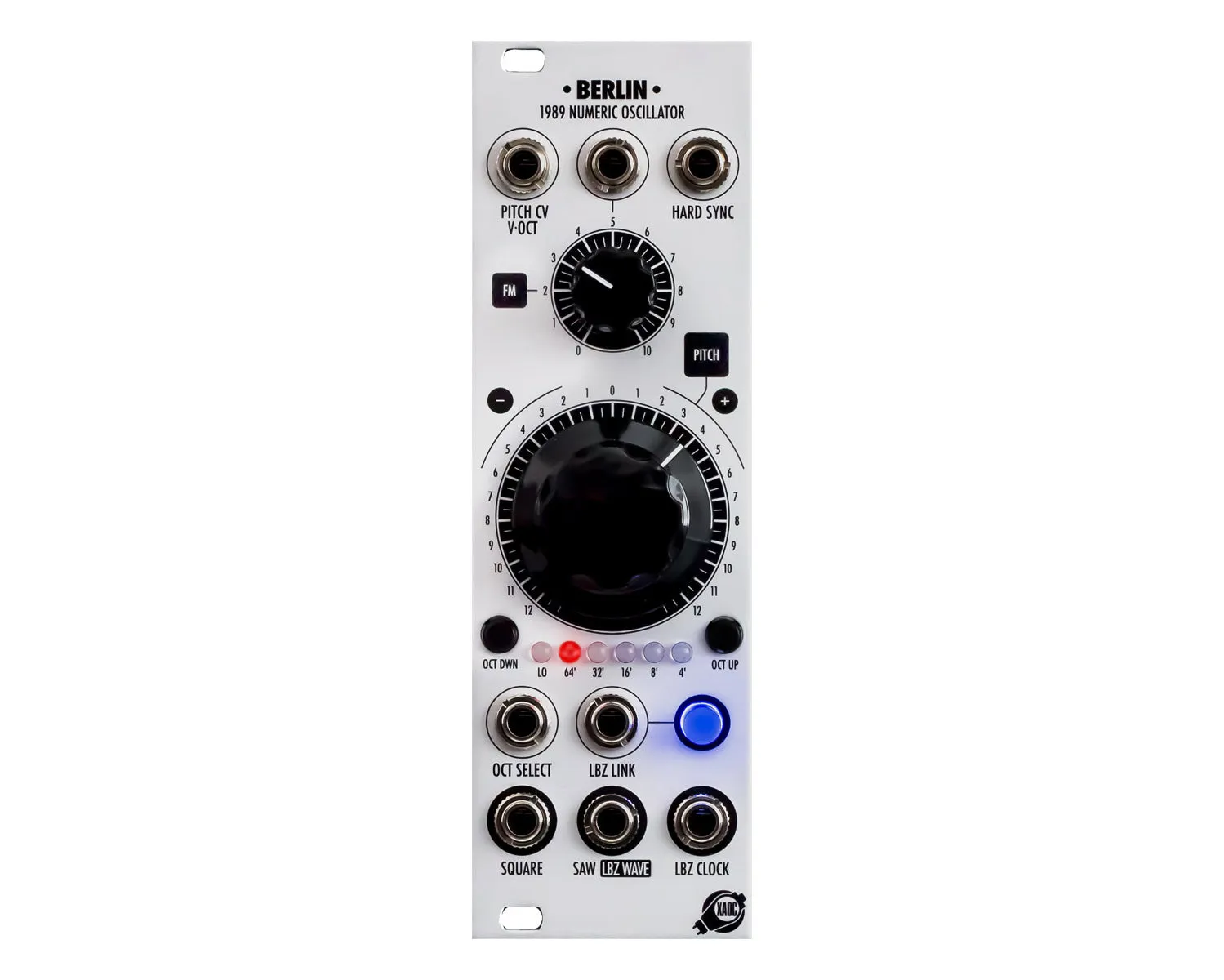

Xaoc Devices Berlin is a compact VCO offering square and saw waves, hard sync, FM input, and octave switching. Its standout feature is the Leibniz Binary Subsystem interface (LBZ in/out), accessible via the LBZ LINK button and gate input. This interface allows integration with other Leibniz modules, transforming the saw wave into a vintage-style wavetable oscillator with experimental potential. Berlin operates similarly to classic PPG Wave and Fairlight CMI synths, using a variable sample rate that prevents aliasing across its entire frequency range (30 seconds in LFO mode to 250 kHz, with a clock speed up to 20 MHz). With voltage control over all parameters, Berlin is highly versatile, capable of producing a wide array of unique waveforms.

Video:

Product Specs

• Item Number: 32771
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Poland
• MPN: XAOC-BERLIN
• Modular Grid: Eurorack
• Dimensions: 8 HP 30 mm deep
• Power: 40 mA 12V 20 mA -12V 0 mA 5V
